6.13 Theorems on Triangles and circles:



6.13.1 Basic proportionality theorem



You must have heard about pyramids in Egypt. How did ancient people measure the height of pyramids without actually climbing them?

They used the concept of ‘similarity’ of polygons to measure the heights and distances which are otherwise difficult to find.

Similarity concept is extensively used in vehicle manufacturing, space technology and many other engineering fields

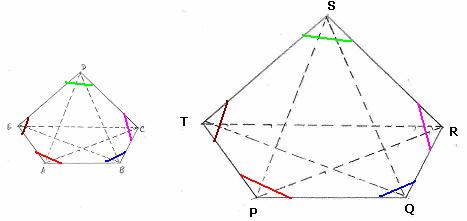

We have figures of two pentagons on the right side



What do you observe?

Don’t you notice that they are identical except for their sizes?



Actually the figure on extreme left side is 50% smaller than the

figure on its right  side.



When you measure the length of the sides of these figures, You will notice that they are in the same ratio.

AB/ PQ = BC/ QR = CD/ RS = ……= 1/ 2

You will also notice that the angles at each of the corresponding vertices are same.

EAB =  TPQ, ABC =  PQR, BCD =  QRS  , . . .





Two polygons having same number of sides are similar (denoted by the symbol ‘|||’) if and only if:

1. The corresponding angles of two polygons are equal

AND

2. The corresponding sides of two polygons are proportional (i.e. ratios of their sides are equal)

Notice that regular polygons of same number of sides are always similar.

If two rectangles are to be similar then the ratio of their lengths = ratio of their breadths as in the figure given below

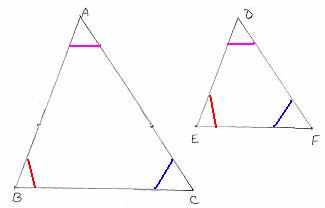

Let us observe the following figures; Don’t they appear of same shape?



ABC = DEF, BAC =EDF, ACB = DFE



The ABC and DEF are similar triangles and we represent this by ABC ||| DEF .







Congruent Figures

Similar Figures

1

Figures have same shape and same size.

Figures have same shape and sizes are in same proportion

2

Corresponding sides are equal

Ratios of corresponding sides are same

3

Congruent triangles are similar.

Similar triangles need not be congruent.





In 6.3.3 we have observed that it is not possible to construct unique triangle given three angles.

If two triangles have two pairs of corresponding angles equal, then triangles are similar (This is called AAA (Angle, Angle, Angle) Postulate

on similarity.



Note: The above postulate is also called AA (Angle, Angle) Postulate on similarity.(The reason is that, if two angles are equal in a triangle then

third angle has to be equal because sum of all angles in a triangle is 1800)



6.13.1. Basic Proportionality Theorem (Thale’s theorem) -- (BPT) A straight line drawn parallel to a side of a triangle, divides the other 2 sides

 proportionately.



Data :In ABC, X is a point on AB and the line  XY is ||BC,

To Prove: AX/BX = AY/CY.



Step

Statement

Reason







Consider    ABC  and AXY

1

AXY = ABC

Corresponding angles(XY||BC)

2

AYX = ACB

Corresponding angles(XY||BC)

3

XAY = BAC

Common angle

4

ABC ||| AXY

AAA Postulate on similarity

5

AB/AX = AC/AY

Corresponding sides are proportional

6

(AX+BX)/AX = (YC+AY)/YC

Spilt AB and AC

7

 1+BX/AX =  1+AY/YC

Simplification

8

BX/AX = AY/YC

Subtract 1 from both sides of Step 5

9

AX/BX =AY/CY

Reciprocal of 6





6.13.1 Problem 1: In the above figure if XY || BC, prove that AB/BX=AC/YC



Step

Statement

Reason

1

AX/XB=AY/YC

BPT



2

1+(AX/XB)=1+(AY/YC)

Add 1 to both sides





3

(XB+AX)/XB=(YC+AY)/YC

X and Y are points on AB and AC





4

AB/XB= AC/YC





























Conversely, If a straight line divides the two sides of a triangle proportionately then that line has to be parallel to the third side.

(Note: Proof is not provided for this (The proof is  by logical reasoning).

Note: Basic proportionality theorem’s concept can be used to divide a given line in to different ratios (Refer 6.1 Problem 11)



6.13.1. Corollary to BPT:

If a line is drawn parallel to a side of a triangle, then the sides of the new triangle formed are proportional to the sides of the given triangle

(New triangle is ‘similar’ to the given triangle)

Data: XY is parallel to BC

To prove: AX/AB=AY/AC=XY/BC

Construction: Draw a line parallel to AC from X and let that line meet BC at Z

Proof:

Step

Statement

Reason

1

BZ/BC=BX/BA

BPT since XZ || AC (Construction)

2

XY=ZC, YC =XZ

By construction, XZCY is a parallelogram and hence opposite sides are equal

3

AX/AB = AY/AC

BPT since XY || BC (Given)

4

LHS =AX/AB = (AB-BX)/AB

X is a point on AB

5

= 1-(BX/AB)



6

= 1-(BZ/BC)

From (1)

7

= (BC-BZ)/BC

Z is a point on BC

8

= ZC /BC



9

=XY/BC= AY/AC

From(2)



6.13.1 Problem 2: Show that in a trapezium, the line joining the midpoints of non parallel sides is parallel to the parallel sides



Data: BCED is a trapezium; X and Y are midpoints of DB and CE respectively

To prove: XY || DE

Construction: Extend DB and EC to meet at A (since DB and EC are non parallel lines, they have to meet at a point when extended)



Step

Statement

Reason

1

AB/BD = AC/CE

BPT (DE || BC)

2

(AX-BX)/BD = (AY-CY)/CE

X and Y are points on DA and EA

3

AX/BD – BX/BD = AY/CE –CY/CE

X and Y are mid points so BD=2BX=2DX,CE=2YE=2CY



4

AX/2DX -1/2 =AY/2YE -1/2

From 3

5

AX/DX =AY/YE

Add 1/2  to both sides in 4 and then multiply both sides by 2



6

XY || DE

Converse of BPT





6.13.1. Theorem 1: If two triangles are equiangular then their corresponding sides are proportional



Data: In ABC and DEF

BAC = EDF

ABC =DEF

ACB =DFE

To Prove: AB/DE = BC/EF= AC/DF

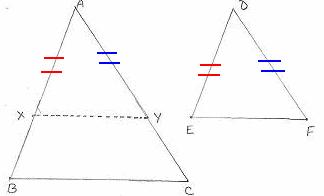

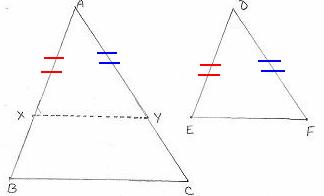

Construction: Mark X on AB and Y on AC such that AX=DE and AY=DF. Join XY

Proof:

Step

Statement

Reason

1

BAC = EDF

Given

2

AX=DE,AY=DF

Construction

3

AXY  and DEF are congruent

SAS Postulate

4

AXY=DEF

Congruent triangle property

5

= ABC

Given

6

XY||BC

Corresponding angles AXY and ABC are equal

7

AB/AX=AC/AY=BC/XY

Corollary to BPT

8

AB/DE=AC/DF=BC/EF

From(2)





























6.13.1. Converse of Theorem 1: If the corresponding sides of two triangles are proportional

then the triangles are equiangular



Data: In ABC and DEF

AB/DE=AC/DF=BC/EF

To Prove:

BAC = EDF

ABC =DEF

ACB =DFE

Construction: Mark X on AB and Y on AC such that AX=DE and AY=DF. Join XY



Step

Statement

Reason

1

AB/DE=AC/DF=BC/EF

Given

2

AX =DE,AY=DF

Construction

3

AB/AX=AC/AY

Step 1 and 2(Substitution)

4

XY||BC

Converse of BPT

5

AXY=ABC, AYX=BCA

Corresponding angles are equal

6

AXY=DEF, AYX=DFE

By construction AXY, DEF are congruent

7

ABC=DEF, BCA=DFE

Step 5, 6(Substitution)

8

BAC =EDF

When two angles are equal third angle has to be equal































6.13.1 Problem 3: ABC is a triangle in which AB=2cm, BC=3cm and CA = 4cm. DEF is another triangle whose largest side is 6cm. If DEF is similar to ABC,

find the relationship between perimeters of these two triangles.



Solution:

The perimeter of ABC= 2+3+4 =9cm

Let the largest side in DEF be DF=6cm

Since triangles are similar we have

DE/AB = EF/BC =DF/AC

Since DF=6 and CA = 4,  DF/AC =6/4=1.5

DE = 1.5*AB = 1.5*2 = 3cm and EF =1.5*BC=1.5*3=4.5cm

The perimeter of DEF = 6+3+4.5 =13.5cm

which is one and half times the perimeter of ABC.



Thus, the perimeters of similar triangles are in same proportion as their corresponding sides



6.13.1 Problem 4: You must have heard about Meharuli Pillar near Qutubminar. It is an iron pillar installed by Chandragupta II who ruled northern

India around 400AD. It is amazing to note that it has not rusted till today. This pillar is quite tall. Let us use properties of similarity to find its height.

Assume that on a visit to the place, you are standing 9feet 2inches away from this pillar and you notice that the shadow cast by the pillar is

2 feet 8 inches. If your height is 5’4”. Find the height of the pillar.



Solution:

For simplicity let us convert all measures to inches.

Let the pillar be represented by AB. You are at D, 110 inches (9’2”) away from the pillar.

Your height is represented by DP = 64” (5’4”). Shadow cast by pillar (DC) is 32 inches.

BAC =PDC = 900

Since AB || DP, ABP = DPC

ACB is a common angle to both BAC and PDC.

Therefore these two triangles are equiangular and hence their corresponding sides

are proportional(AAA Postulate)

Hence AB/PD = AC/DC. Note that AC =AD+DC = 110+32= 142

AB = AC*PD/DC = 142*64/32=284’’

The height of iron pillar = 284 inches = 23 feet 8inches.

You will notice from history books that this answer is correct.



6.13.1 Problem 5: ABC is a right angled triangle at B and D is any point on AB. DE is perpendicular to AC. If AD=4m, AB=16m, AC=24m. Find AE



Solution:

ABC =DEA = 900. Since A is the common vertex of triangles ABC and DAE, BAC = DAE.

Since two angles of these triangles are same, third angle also has to be same (BCA=ADE).

Therefore ABC and DEA are equiangular (similar) triangles.

Therefore by theorem, corresponding sides are proportional.

The corresponding sides are:

AC, AD (hypotenuse)

BC, DE (opposite side of A)

AB, AE (opposite to BCA and ADE)

 AE/AB = DE/BC=AD/AC

AE = AB*AD/AC = 16*4/24 = 16/6 =2.67m



6.13.1 Problem 6:  In the trapezium ABCD, AD||BC and the diagonals intersect at O. Prove that OB/OC = OD/OA



Solution:

Since AD||BC, BCO = OAD, CBO=ODA (alternate angles)

Since the lines AC and BD intersect at O, COB =AOD (vertically opposite angles)

 The triangles BCO and DOA are equiangular.

Hence by theorem the corresponding sides are proportional

The corresponding sides are

OB, OD (opposite to angles BCO and OAD)

OC, OA (opposite to angles CBO and ODA)

 By theorem OB/OD = OC/OA

i.e. OB*OA=OD*OC

OB/OC = OD/OA



6.13.1 Theorem 2: Areas of similar triangles are proportional to the squares of the corresponding sides



Data: Let ABC and DEF be similar triangles, in which (BC,EF), (AB,DE) and (AC,DF)  are pairs of corresponding sides.

To Prove: Area of ABC/Area of DEF = BC2/EF2= AB2/DE2 =AC2/DF2

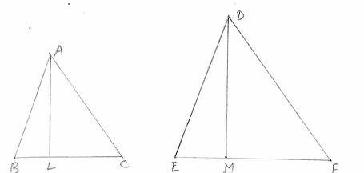

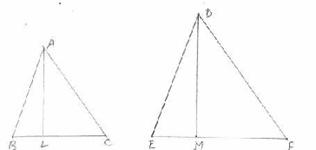

Construction: Draw AL perpendicular to BC and DM perpendicular to EF





Step

Statement

Reason











1

Area of ABC= BC*AL/2

Area of triangle

= base*height/2

2

Area of DEF = EF*DM/2

Area of triangle

= base*height/2

3

(Area of ABC)/ (Area of DEF)=(BC/EF)*(AL/DM)



4

ABL =DEM

Triangles ABC and DEF are similar (Given)

5

ALB =DME= 900

Construction

6

BAL =EDM

Since 2 angles are equal, third angle is also equal

7

AL/DM = AB/DE =BL/EM

Corresponding sides are proportional  in similar triangles

8

But AB/DE =BC/EF

Triangles ABC and DEF are similar (Given)

9

AL/DM=BC/EF

From (7) and (8)

10

(Area of ABC)/ (Area of DEF)=(BC/EF)*(BC/EF)= BC2/EF2

Substitute (9) in (3)

11

Similarly we can prove other 2 equalities





















































6.13.1 Corollary : If the areas of two similar triangles are equal then they are congruent



Proof :

Let ABC and DEF be two similar triangles with BC and EF as base

By above theorem

(Area of ABC)/ (Area of DEF) = BC2/EF2

Since the areas are same it follows that BC=EF,

Similarly we can prove that other corresponding sides are also equal

Hence by SSS Postulate they are congruent.





6.13.1 Problem 7: Prove that the area of similar triangles have the same ratio of the squares of corresponding altitudes



Solution:

In the above theorem, in step 7, we had proved that triangles ALB and DME are equiangular.

Because of this, the corresponding sides are proportional (Theorem 1)

 AB/DE = AL/DM

(AB/DE)2 = (AL/DM)2

Since the triangles ABC and DEF are similar, by the above theorem

Area ofABC /Area of DEF = BC2/EF2 = AB2/DE2 = AL2/DM2

= squares of the ratio of the altitudes



6.13.1 Problem 8:  In ABC, BE is Perpendicular to AC and CF is perpendicular to AB. BE and CF intersect at O.

Prove that Area ofBOF / Area of COE= BF2/CE2



Step

Statement

Reason

1

BFO =CEO = 900

Given

2

BOF =COE

Opposite angle

3

FBO =OCE

Since 2 angles are equal, third angle has to be equal

4

BFO ||| CEO

Triangles are equiangular

5

Area of BFO /Area of CEO = BF2/CE2

By theorem


6.13.1 Problem 9:  In the adjoining figure ABC and DBC are two triangles on the same base. Prove that Area of ABC /Area of DEF = AO/DO



Construction: Draw Perpendicular to base BC from A and D to cut the line BC at E and F.



Step

Statement

Reason

1

AOB =DOF

Vertically opposite angle

2

AEO =DFO= 900

Construction

3

AEO |||DFO

AAA postulate on similarity

4

AE/DF = AO/DO

Corresponding sides are proportional

5

Area of ABC /Area of DEF

= {(1/2)BC*AE}/{(1/2)BC*DF}=AE/DF

Formula for area

6

Area of ABC /Area of DEF=AO/DO

Step 4




6.13.1 Problem 10:  Prove that internal bisector of an angle of a triangle divides the opposite side in the ratio of the sides containing the angle.

(This is also called vertical angle theorem)



Construction: Draw a line from C parallel to AD to meet the extended BA at E(DA||CE)

To Prove: AB/AC = BD/DC

Step

Statement

Reason

1

DA||CE

Construction



2

BD/DC = BA/AE

BPT on BCE



3

BAD =AEC

Corresponding angles DA||CE



4

DAC =ACE

Alternate angles DA||CE



5

BAD =DAC

AD is bisector of BAC



6

AEC =ACE

Step 4,5

7

AE=AC

Step 6 (CAE is isosceles)



8

BD/DC = BA/AC

Step 2




Note: Converse Of the above problem is that, if a line segment drawn from the vertex of an angle of a triangle to its opposite side divides the line

in the ratio of the sides containing the angle, then the line segment bisects the angle.



6.13.1 Problem 11:  In the Adjoining figure diagonal BD of a quadrilateral ABCD bisects B and D Prove that AB*CD =AD*BC



Hint :

1. ADB = CDB, ABD = CBD( Given that BD bisects  B and D)

2. BY AAA postulate on similarity ADB |||CDB

3. Hence corresponding sides are proportional: AB/BC =AD/CD

  AB*CD =AD*BC



6.13.1 Problem 12:  What is the height of the intersecting point joined by strings tied to the base and top of poles of height 15 and 10 ‘Mola’s( A unit of measurement)? ( Lilavati Shloka 162) .



Step

Statement

Reason

1

OP/CD = BP/BD

OP || CD , BPT

2

OP/AB=PD/BD

OP || AB  , BPT

3

OP/CD +OP/AB  = (BP/BD)+ (PD/BD)

Add (1),(2)

4

OP(AB+CD)/(AB*CD) = (PD+BP)/BD =1

(PD+BP) =BD

5

OP = (AB*CD)/ (AB+CD) = 15*10/25 = 6



Note : we can find  BP or PD given PD or BP





6.13.1 Problem 12:  O Lilavati, Tell me the distance between the toy and the ‘Deepa’ ( Candle stand) and the height of ‘Deepa’ if:

the height of toy is 12” and the height of its shadow is 8” in its original place

height of the shadow becomes 12” if toy is moved forward by   2Hasta’ ( 1 Hasta = 24”)

 ( Lilavati Shloka 244). Bhaskara also gives formulae to solve these types of problems.



Solution :  In the figure

AB is the Deepa, CL and EM are the initial and final positions of the toy whose height is 12”.

CD is the shadow of the toy at C and the length of the shadow is 8”.

New position of the toy is at E (CE = 48”( 2*24))

EF is the shadow of the toy at E its length is 12”.



Step

Statement

Reason

1

AB/LC = BD/CD

LC || AB , BPT

2

AB/ME =BF/EF

ME || AB , BPT

3

BD/CD = BF/EF

LC=ME=12, From (1),(2)

4

(BC+CD)/CD = (BC+CD+DE+EF)/12

BD = (BC+CD), BF =(BC+CD+DE+EF) , EF=12

5

(BC/8)+1 = (BC/12)+5

CD=8,  (CD+DE+EF) = 8+40+12 =60

6

BC(1/8-1/12) = 4



7

BC{(6-4)/48} =4   BC =96   BD = 104

BD = BC+CD = 96+8

8

AB = (BD*LC)/CD= (104*12)/8 = 156

From (1)



6.13.2 Pythagoras Theorem:



In a right angled triangle, the square of hypotenuse is equal to sum of squares of other 2 sides.

There are around 50 proofs for this theorem and we use one of the simplest proof here.

It is generally represented as

AC2 = AB2+BC2 when right angled at B

Data: In triangle ABC = 900

To Prove: AC2 = AB2+BC2

Construction: Draw BD perpendicular to hypotenuse AC



Proof:

Step

Statement

Reason





1

ABC= 900

Given

2

BDA= 900

Construction

3

BAC =BAD

Common angle

4

ABD =BCD

Since 2 angles are equal, third angle has to be equal

5

ABC ||| ADB

Triangles are equiangular

6

AB/AD = AC/AB

Ratios of sides are in proportion(6.13.1 Theorem 1)

(side opposite to C and hypotenuse)

7

 AB2 = AC*AD

Simplification

8

ABC ||| CDB

Repeat the steps 1 to 5 for ABC and CDB

9

BC/CD=AC/BC

Ratios of sides are in proportion(6.13.1 Theorem 1)

(side opposite to A and hypotenuse)

10

 BC2 = AC*CD

Simplification

11

 AB2 + BC2

=AC*AD+AC*CD

=AC(AD+CD)=AC*AC= AC2

Add (7) and (10) and note D is a point on AC











































Have you noticed the following?

1.  25 =52 = 32+42 = 9+16

2.  100 = 102 = 82+62  =64+36

The triplets like (3,4,5), (6,8,10), (8,15,17), etc are called Pythagorean triplets



Note : It was  Baudhayana (600BC), an Indian mathematician who first found  this relationship  in a right angled triangle !



Converse of Pythagoras Theorem: If the square of one side is equal to sum of squares of other two sides then these two sides(AB,BC) contain a right angle

(If AC2 = AB2+BC2 then B= 900)

Proof is provided by constructing another right angled triangle and then proving that both are congruent (By using SSS postulate).

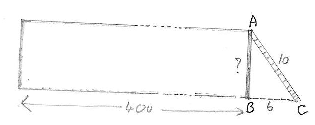

6.13.2 Problem 1:  A school has a compound wall of 400 feet. A painter was asked to paint the wall. The painter charges Rs 80 per sq. ft to paint the wall.

The painter has a ladder of length 10 feet. When the ladder rests against the wall its foot is 6 feet away from the compound wall. Find out how much the

school pays the painter to paint the compound wall.



Solution:

If we find the area of the compound wall, we can multiply this area by the rate, to know howmuch the painter is to be paid for his work.

We know AC2 = AB2+BC2

Substituting values for AC=10 and BC=6 we get

102 = 62+AB2

By transposition we get

AB2=100-36 =64  AB = Height of the wall = 8 feet

Area of the compound wall = 400*8 = 3200 sq ft.

Since the painter charges Rs 80 per sqft. Total amount payable is Rs 2,56,000 (=3200*80).



6.13.2 Problem 2: You are selected from your school to participate in chess a game being conducted in another school. You cycled to reach that

school as follows:

From your house you cycled 8 km to the north and then 5 km to east and then 4 km to the north.

How many km did you peddle to reach the other school?



Solution:

Draw a figure to represent AB= 8km, BC=5km and CD=4 km. The route you cycled is ABCD.



We are required to find DA.



Draw a line DE parallel to CB to meet the extended line AB at E.



Since DE is parallel to BC and BE is parallel to CD, BCDE is a rectangle

DE= 5 and

AE = AB+BE = 8+4 =12



Note that DEA is a right angled triangle

 AD2 = ED2+EA2 = 52+122  = 25+144 = 169 = 132

 AD= 13km



6.13.2 Problem 3:  AD is the altitude through A in the ABC and DB:CD = 3:1. Prove that BC2 = 2(AB2-AC2)



Step

Statement

Reason

1

BD2 = AB2-AD2

Pythagoras theorem on ABD

2

AC2 = AD2+CD2

Pythagoras theorem on ADC

3

 AD2 = AC2-CD2

Step 2

4

 BD2 = AB2-(AC2 -CD2)

 = AB2-AC2 +CD2

(1)  and (3)

5

DB/CD = 3   BC = BD+CD =4CD

Given

6

 DB=3CD  BD2=9CD2

Step 5

7

 9CD2 = AB2-AC2 +CD2

(6) and (4)

8

 8CD2 = AB2-AC2

Transposition

9

 16CD2 = 2(AB2-AC2)

Multiply 8 by 2

11

BC2=  2(AB2-AC2)

Step 5



6.13.2 Problem 4:  A Bamboo pole of height 32 ’Mola’(Unit of measurement : say  feet) broke due to heavy wind and fell on the ground. If the pole’s top touched the ground at 16 ‘Mola’ away from its base, find the point at which it broke.(Lilavati Sholka 150)



Solution:

AB is the pole of height 32 feet.Let the pole break at D to touch the ground at C

BC = 16 feet. Note AB= BD+DC = 32 feet

By Pythagoras theorem DC2 = DB2+BC2 = DB2+162 = DB2+256 Let BD = x and DC = y

So we have two equations to solve

x+y =32     -----à(1)

And

y2 = x2+256  -----à(2)

From (1) we get y = 32-x

By substituting this value of y in (2) we get (32 - x)2 =  x2+256

LHS = 322+ x2 - 64x (expand (a-b)2= a2+ b2-2ab) = 1024 + x2 - 64x

Since LHS= RHS

1024 + x2 - 64x = x2+256

 768 = 64x (Transposition)

 x = 12

  The pole breaks at 12feet from the bottom.

Verification: since x=12, y = 32-12 = 20

We observe that 400 = 202 = 144+256 = 122+162

This is as per Pythagoras theorem.

6.13.2 Problem 5:  A monkey climbed down from a tree of height 100 ‘Mola’( A unit of measurement like feet) and went to a pond 200 ‘Mola’ away. Another monkey jumped up a little distance and then jumped down diagonally and reached the same pond. If both monkeys travelled the same distance, tell me the height to which the second monkey jumped?( Lilavati : Shloka 157)

BD represents the tree of height 100 Mola(say Feet) C is the pond 200 Mola(Feet) away. Let x be the height to which the monkey jumped from the top

of tree BD. Distance travelled.

Solution:

BD represents the tree of height 100 Mola(say Feet). C is the pond 200 Mola(Feet) away.

Let x be the height to which the monkey jumped from the top of tree BD.(DA=x)

Distance travelled by the first monkey = DB+BC = 300

Distance travelled by the second monkey = DA+AC = x+AC

It is given that distance travelled by  both monkeys are same

 x+AC=300  AC= 300-x   AC2  = (300-x)2   =90000-600x+ x2  ------- (1)

 By Pythagoras theorem

AC2 = BA2+BC2 = (100+x)2+2002  = 10000+200x+x2+40000          ---------(2)

From  (1) and (2)

10000+200x+x2+40000 =90000-600x+ x2

 800x = 40000  x=50



Verification :

 AC2 = (100+50)2+ 2002 = 22500+40000 = 625000 = 2502

 100+200 = 50+ 250

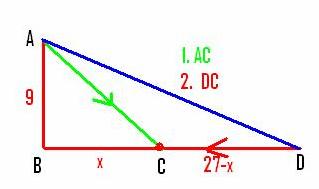

6.13.2 Problem 6:  A peacock is sitting on the top of a pillar of height 9 ‘Mola’(feet). An ‘ant hill’   exists at the base of the pillar. To hide itself from the attack of peacock, a snake is approaching the ‘ant hill’  from a distance three times the height of the pillar. Seeing the snake approaching the ‘ant hill’, peacock flies down to catch the snake. If both snake and peacock travel at the same speed, find the distance from ‘ant hill’ at which peacock catches the snake. ( Lilavati : Shloka 152)



Solution:

AB is the pillar of 9 feet. Peacock is sitting at A. D is the position of snake at a distance of 27 feet from the pillar.  Peacock follows the path (AC) of a triangle to catch the snake.

Let C be the place where peacock catches the snake. Let BC=x.

 CD=27-x

Since both peacock and snake travel at same speed AC =CD

 AC=27-x  AC2  = (27-x)2   =729-54x+ x2 ------- (1)

From Pythagoras theorem

AC2 = BA2+BC2 = (9)2+x2  = 81+x2         ---------(2)

From (1) and (2)

729-54x+ x2 =81+x2

 729-81 = 54x   x= 648/54=12



Verification ::  AC2 = (27-12)2 =  92 +  122 (  225 = 81+144)





6.13.2 Problem 5: A circus group has put up a tent around a central pole of height of 11 meters. At 12 meters distance, from the foot of the central pole,

 the circus group has put up few poles of height 6meters on the ground in a circular fashion around the central pole. The poles are strengthened by ropes

tied between the top of central pole and top of the other poles around it. Find the length of the rope required to tie the poles at the top.



Solution:

The erection of poles can be represented as in the adjoining figure.

BD is the central pole of height = 11 Meters

AC is one of the supporting poles of height 6 meters, put  up on the ground, around the central pole.

The distance between the central pole(BD) and the supporting pole(AC) on the ground (AB) = 12 meters

We are required to find DC. From C, draw a line parallel to AB to cut BD at E.

ABEC is a rectangle with CE=12 and BE=AC=6 ED=5

CED is a right angled triangle

Hence by Pythagoras theorem

DC2 = CE2+ED2= 122+52=144+25 =169 = 132 CD = 13 meters

Therefore the length of the rope required to tie these 2 poles at the top = 13 meters.





6.13.2 Problem 6: In the adjoining figure ACB = 900 AB=c, BC=a, AC= b, CDB = 900and CD =p

Prove that 1/p2 = 1/a2 + 1/b2



Step

Statement

Reason

1

AB2 = AC2+BC2

Pythagoras theorem for ACB

2

c2 = b2+a2

Substitution

3

(1/2)AB*CD = (1/2)cp

Area of ACB with base = AB

4

(1/2)AC*BC = (1/2)ba

Area of ACB with base = AC

5

(1/2)cp = (1/2)ba

Both areas are same

6

c = ab/p

Step 5

7

a2b2/ p2 = b2+a2

Substitute value of c in step 2

8

1/ p2= (b2+a2)/ a2b2

Divide both sides by a2b2

9

1/ p2= 1/a2+1/b2






6.13 Summary of learning





No

Points to remember

1

A straight line drawn parallel to a side of a triangle divides the other 2 sides proportionately (BPT)

2

If two triangles are equiangular then their corresponding sides are proportional

3

Areas of similar triangles are proportional to the squares of their corresponding sides

4

In a right angled triangle, the square of hypotenuse is equal to sum of squares of other 2 sides





Additional points:



6.13.1 Theorem 3: Areas of triangles having a common vertex and having bases along the same line, are proportional to the lengths of their bases.

In the adjoining figure triangles ABP,ABC and ABD have the same vertex A and their bases are on the same line BD.

We are required to prove that

Area of ABP/Area of ABC = BP/BC, Area of ABC/ Area of ABD = BC/BD

Proof:

Since all the triangles have the same vertex and their bases are on the same straight line, the heights of

all the triangles are same.

We know that Area of a triangle = ½*Base*Height.

Area of ABP/Area of ABC = (1/2*BP*height)/(1/2*BC*height) = BP/BC

Similarly, Area of ABC/ Area of ABD = BC/BD



6.13.1 Theorem 4: A perpendicular drawn from the vertex of the right angle of a right angled triangle divides the triangle into two similar triangles and

they are also similar to the given triangle.



Given: In the right angled  ABC, ABC = 900, BDAC

To prove: ABC ||| ADB ||| BDC



Step

Statement

Reason







Consider ADB and ABC

1

ADB = ABC =  900

BDAC

2

BAD = BAC

Common

3

ABC ||| ADB

AAA Postulate



Consider BDC and ABC

4

BDC = ABC =  900

BDAC

5

BCD = BCA

Common

6

ABC ||| BDC

AAA Postulate





7

ABC ||| ADB |||BDC

Steps 3 and 6



Note: In the above diagram prove that BD2 = AD*DC

Since ADB ||| BDC, AD/BD =BD/DC (Corresponding sides of similar triangles are proportional)

 AD*DC = BD2



6.13.1 Theorem 5 (300-600-900 triangle theorem) : If the angles of a triangle are 300, 600 and 900 then the side opposite to 300 is half the

hypotenuse and the side opposite to 600  is /2 times the hypotenuse.

Given: In  ABD, ABD = 600, BAD = 300, ADB = 900

To prove: BD = AB/2, AD = /2 * AB

Construction: Produce BD such that DC = BD. Join AC.

Step

Statement

Reason







Consider ADB and ADC

1

ADB = ADC = 900

Given that ADB = 900 and Construction

2

BD = DC

Construction

3

AD is common



4

ADB ||| ADC

SAS Postulate

5

BAD = CAD

Corresponding angles of similar triangles are equal

6

BAC = 600

Step 5 and it is given that BAD = 300

7

AB = AC = BC

ABC is an equilateral triangle (all angles = 600)

8

BD = DC = AB/2

Step 2, 7

9

AB2 = AD2+BD2

Pythagoras theorem

10

AB2 = AD2+(AB/2)2

Step 8

11

AD2 = AB2-(AB/2)2 = (3AB2)/4

Simplification

12

AD = /2*AB




6.13.3 Postulates on similarity:

In addition to AAA postulate on similarity discussed in the beginning of this section, we have three more postulates on similarity.



2. ‘Two triangles are similar if two of their sides are proportional and their included angles are same’

This statement is called ‘SAS (Side, Angle, Side) Postulate on Similarity’.





In the adjoining figure AB/DE = BC/EF and their included angle ABC = DEF.

There fore ABC ||| DEF.



3. ‘Two triangles are similar if the sides of one triangle are proportional to the corresponding sides of another triangle’.

This statement is called ‘SSS (Side, Side, Side) Postulate on Similarity’.





In the adjoining figure DE/AB = EF/BC = DF/AC

There fore ABC ||| DEF.









Table: Postulates for similarity of triangles:

Proportional

Equal

Similarity

Postulate

Side

Side

Side

Angle

Angle

Angle

-

-

-

y

y

y

AAA

Y

Y

-

Y(Included)

-

-

SAS

Y

y

y

-



-

SSS


6.13.3 Intercept Theorem: If three or more lines are intercepted by two transversals, the intercepts made by them on the transversals are

proportional. (Note this is a variation of the theorem 6.8.7)



Given: Transversal p makes intercepts on three lines, l, m and  n.

(I.e. l || m || n) q is another transversal which makes intercepts DE and EF

To prove: AB/BC=DE/EF

Construction: Draw AS and BT || the line q



Steps

Statement

Reason



Consider ABS and BCT

1

ABS = BCT,

BAS = CBT,

Corresponding  angles

(It is given that line l || line m)

2

ABS ||| BCT

AA Postulate  On similarity

3

AB/BC=AS/BT

Corresponding sides are proportional

4

ASED is a parallelogram

AS||DE(construction), AD||BE(Given)

5

AS=DE

Sides of  parallelogram

6

BTFE  is a parallelogram

BT||EF(construction), BE||CF(Given)

7

BT=EF

Sides of  parallelogram

8

AB/BC = AS/BT  = DE/EF

Step 3,5 and 7































6.13.3 Problem 1:  In the adjacent figure the medians IB and JC meet at G. Prove that BG = 2GI.

Hint:

Since BI and CJ are medians, by definition of a median BJ=JA and CI=IA.
Hence J and I are mid points of the sides of the triangle.

By mid point theorem (6.7.7)

2IJ = BC and IJ || BC

Using the fact that IJ || BC and AAA postulate on similarity prove that GIJ and GBC are similar

 IJ/BC = GI/BG

Since 2IJ = BC, it follows that GI/BG =1/2

i.e. 2GI = BG





6.13.3 Problem 2:  As shown In the figure given below, M is the mid point of BC of parallelogram ABCD. DM intersects the diagonal AC at P and

it meets AB produced to E. Prove that PE = 2PD



Given: ABCD is a parallelogram; M is mid point of BC

To prove: PE = 2PD



Step

Statement

Reason













Consider MCD and MBE

1

CM = MB

Given

2

DMC = BME

Vertically opposite angles

3

DCM  = MBE

Alternate angles  AB||CD

4

MCD MBE

ASA  Postulate

5

DM = ME

Corresponding sides of congruent triangles are equal



Consider ADP and MCP

6

APD = MPC

Vertically opposite angles

7

ADP  = PMC

Alternate angles  AD||BC

8

DAP  = PCM

Alternate angles  AD||BC

9

ADP ||| MCP

AAA Postulate

10

AD/CM = PD/PM

Corresponding sides of similar triangles are proportional

(6.13.1 Theorem 1)

11

AD/CM = 2

AD=BC=2CM (Given)

12

PD/PM = 2

Steps 10 and 11

13

PE = PM+ME = PM+DM

= PM+DP+PM = 2PM+PD

ME=DM as per step 5

14

PE = PD+PD = 2PD

2PM=PD(step 12)

















































6.13.3 Problem 3: In the given figure ABC, DE||BC and AD:DB = 3:5. Calculate the ratio of :

(i)AD/AB, AE/AC, DE/BC

(ii) Area of DEO/Area of EOC

(iii) Area of DBE/Area of DBO

(iv) Area of ADE/trapezium DECB



Note:



1. DOE and EOC have bases on the same line (DC) and same vertex E. Hence their areas are proportional to their bases (=DO/OC).

(Refer 6.13.1 Theorem 3)

2. DBE and DBO have bases on the same line (BE) and same vertex D. Hence their areas are proportional to their bases (=BE/BO).

3. ABC and ADE are similar triangles and hence their areas are proportional to the squares of their corresponding sides (=BC2/DE2).

(Refer 6.13.1 Theorem 2)



Steps

Statement

Reason







1

AB/AD = AC/AE = BC/DE

DE||BC and BPT Theorem(6.13.1)

2

AB/AD = (AD+BD)/AD = 1+BD/AD = 1+ 5/3 = 8/3

Given AD:DB = 3:5

3

EDO = OCB & DEO = OBC

DE||BC and Alternate angles

4

EDO ||| OBC

AAA postulate on similarity

5

DE/BC = DO/OC

corresponding sides are proportional

6

DE/BC = OE/OB

Follow above steps to prove this.

7

DE/BC = AD/AB = 3/8

Step 1, Step 2

8

Area of DEO/Area of EOC= DO/OC

Note 1

9

=3/8

Step 5,7

10

Area of DBE/Area of DBO = BE/BO

Note 2

11

=(BO+OE)/BO = 1+OE/BO = 1+(3/8) = 11/8

Step 6

12

Area of trapezium DECB = Area of ABC – Area of ADE



13

Area of trapezium DECB/ Area of ADE =

(Area of ABC- Area of ADE) / Area of ADE

= Area of ABC/ Area of ADE-1

= (BC/DE)2-1 = (64/9)-1 = 55/9

Note 3


6.13.2 Problem 7: Find the area of an isosceles triangle whose equal sides is ‘a’ units and base is ‘b’ units

Solution:

In the adjoining figure let AC=BC=a and AB= b

We know AD=DB =b/2 (perpendicular from vertex C bisects the base (AB))

By Pythagoras theorem AC2 = AD2+DC2

DC2 = AC2 - AD2= a2-(b/2)2= (4a2-b2)/4

i.e. DC = SQRT(4a2-b2)/2



Area of ADC = (1/2)*base*height

= (1/2)*(b/2)*SQRT(4a2-b2)/2 = 1/8*b*SQRT(4a2-b2)

Area of ABC = 2*Area of ADC = ¼*b*SQRT (4a2-b2)



6.13.2 Problem 8: Find the area of an equilateral triangle whose equal sides are ‘a’ .



Solution:

Since all sides are equal in an equilateral triangle we can substitute b=a in the formula

arrived in the above problem (6.13.2 Problem 7).

Note that DCB = 300, DBC= 600, AD=DB=a/2

Area of an equilateral triangle = 1/4 *a* SQRT (4a2-a2) = (/4)a2

 Using Pythagoras theorem we can prove that DC =  (a/2)

We may observe that in triangle CDB the angles are in the ratio of 30:60:90 and the corresponding sides are in the ratio of (½):(/2):1 or 1::2





6.13.2 Problem 9: The sum of squares of 2 sides of a triangle is equal to twice the square of half the third side plus

 twice the square of the median which bisects the third side. (This is also called as Apollonius theorem)

Given: ABC is a triangle, AD is the median

To prove: AB2 + AC2 = 2BD2+2AD2

Construction: Draw AE BC



Hint: Apply Pythagoras theorem to three triangles (AEB, AED, AEC).



Then substitute and simplify the terms and also use the given data  that BD=DC.







In section 6.4 we studied many concepts such as Incenter, Circumcenter, Orthocenter and Centroid. We shall prove their special properties here.



6.13.4 Concurrency theorems:



6.13.4 Theorem 1: Prove that angular bisectors of a triangle are concurrent.

Given: In ABC, the bisectors of ABC and BCA meet at I.  IA is joined.

To prove: AI bisects BAC.

Construction: Draw IDBC, IEAC and IFAB



Step

Statement

Reason

1

ID=IF

BDI BFI (ASA Postulate with BI as common side)

2

ID=IE

CDI CEI (ASA Postulate with CI as common side)

3

IE=IF

Steps 1,2

4

AFI AEI

RHS Postulate (hypotenuse AI is common )

5

FAI=EAI

Corresponding angles are equal (Step 4)

6

AI bisects BAC

Step 5


Thus angular bisectors are concurrent at I (Incenter).



6.13.4 Theorem 2: Prove that perpendicular bisectors of a triangle are concurrent.

Given: In  ABP, perpendicular bisectors SD of BP and SE of AP meet at S and SF is Perpendicular to AB.

To prove: SF is perpendicular bisector of AB.

Construction: Join SA, SB and SP.



Step

Statement

Reason

1

SB=SP

BDS PDS (Given BD=DP) and SAS Postulate with SD as common side

2

SP=SA

PES AES (Given PE=AE) and SAS Postulate with SE as common side

3

SB=SA

Steps 1,2



4

AFS BFS

Step3, (Given AFS = BFS = 900) and RHS Postulate with SF as common side

5

AF=BF

Corresponding sides of congruent triangles are equal(Step 4)



6

SF bisects AB

Step 5

Thus perpendicular bisectors are concurrent at S (Circumcenter).

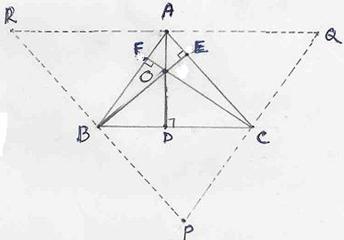

6.13.4 Theorem 3: Prove that altitudes of a triangle are concurrent.

Given: In ABC, altitudes AD from vertex A and BE from vertex B meet at O. CO is produced to meet AB at F.

To prove: CF is perpendicular to AB.

Construction: Through A, B and C draw parallel lines to the bases BC, CA and AB respectively forming PQR.



Step

Statement

Reason

1

BCQA is a parallelogram

By construction BA||CQ, BC||AQ

2

BC=AQ

Step 1

3

BCAR is a parallelogram

By construction RA||BC, RB||AC

4

RA=BC

Step 3

5

AQ=RA (A is mid point of RQ)

Steps 2 and 4

6

AD is perpendicular to RQ

Given : AD BC and by construction BC||RQ

7

AD is perpendicular bisector of RQ

Steps 5 and 6

8

BE is perpendicular bisector of RP

Repeat steps 1 to 7 with respect to parallelograms RBCA, ABPC and BERP

9

Perpendicular bisectors AD and BE of PQR meet at O

Steps 7 and 8

10

CF is perpendicular bisector of PQ and it passes through O

Previous theorem (6.13.1 Theorem 2) in view of Step 9

11

CFAB

By construction PQ||BA







































Thus Altitudes are concurrent at O (Orthocenter).



6.13.4 Theorem 4: Prove that medians of a triangle are concurrent and their division is in the ratio of 2:1.

Given: In ABC, the medians BE and CF meet at G. AG produced to meet BC at D.

To prove: BD=DC and AG:GD=BG:GE=CG:GF=2:1

Construction: Produce AD to K such that AG=GK. Join BK and CK.



Step

Statement

Reason







Consider ABK

1

BF=FA

Given

2

GK=AG

By construction

3

FG||BK, FG=(1/2)BK

Mid Point theorem



Consider ACK

4

EG||CK, EG=(1/2)CK

Mid Point theorem(Similar to steps 1,2)



5

GC||BK

Step 3

6

BG||KC

Step 4

7

BGCK is a parallelogram

Steps 5 and 6

8

The diagonals BC and GK bisect each other

Step 7 (Property of parallelogram)

9

BD=DC

Step 8

10

GD = DK = (1/2)GK

Step 8

11

= (1/2)AG

Step 2

12

2GD=AG

Steps 10, 11

Similarly we can prove that 2GE=BG and 2GF=GC.



Note: In case of an equilateral triangle, Centroid (G),Incenter (I),Circumcenter(C, S) and Orthocenter (O)are same

1. BD=DC, CE=EA, BF=FA (G is the point where the three medians meet, G=G)

2. ADBC, BEAC, CFAB (G is the point where the three altitudes meet, G=O)

3. AD, BE, CF are perpendicular bisectors (G is the point where the three perpendicular bisectors meet, G=S)

4. BAD =CAD, CBE=ABE, BCF=ACF (G is the point where the three angular bisectors meet, G=I)



6.13.5 Relationship between similarity and size-transformation.



Introduction:  You must have seen models of houses, flats, buildings, townships…They are all scaled down versions of actual constructions. These

miniature versions give us a bird’s eye view of actual constructions. These models are ‘reduction’s of actuals. Similarly enlarged models are used

when the actual constructions to be built are very small.

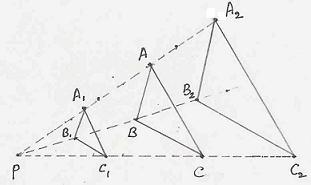

Let us study the adjacent figure.

ABC is a triangle and P is an external point.

Points A1, B1 and C1 are on the lines PA, PB and PC respectively such that

PA1 = (1/2)PA, PB1 = (1/2)PB, PC1 = (1/2)PC and

Points A2, B2 and C2 are on the lines PA, PB and PC respectively such that

PA2 = 2PA, PB2 = 2PB, PC2 = 2PC

By joining A1, B1, C1 and A2, B2, C2 we get A1B1C1 and A2B2C2 as two other triangles.

We observe the following properties about the triangles ABC, A1B1C1 and A2B2 C2:

  1. Their sides are proportional
  2. They are all similar triangles
  3. A1B1C1 is half the size of ABC
  4. A2B2C2 is twice the size of ABC

(We can also prove the above observations)

We define A2B2C2 as the triangle ‘enlarged’ by a ‘scale factor of 2’ with respect to P. Here P is called as the ‘center of enlargement’

We define A1B1C1 as the triangle ‘reduced’ by a ‘scale factor of 1/2’ with respect to P. Here P is called as the ‘center of reduction’

The type of enlargement or reduction discussed above is called ‘Size Transformation’.

Size transformation is not restricted to triangles and they are applicable for all types of geometrical figures.

Properties of size transformations:

  1. The shape of the enlarged/reduced figure is same as that of the original figure
  2. If the scaling factor is k then each side of the resulting figure (image) is k times the corresponding side of the given (original) figure.
  3. If

(i)                 k > 1 then the transformation is enlargement

(ii)               k < 1 then the transformation is reduction

(iii)              k = 1 then there is no transformation(same as original)















6.13.5 Problem 1:  In the following figure, triangles APQ and AMN are the images of the triangle ABC under enlargement and reduction respectively

with A as center.

Given that MN=4cm, AB=9cm, BC=8cm, AC=6cm and CQ=3cm,

1. Name the images of B in each case

2. Find the scaling factor in each case

3. Find AN, AM, BP and PQ



Solution:

Step

Statement

Reason

1

ANM = ABC = APQ

MN||BC||PQ (Alternate angles)

2

The images of B are N and P

Step 1

3

ANM is reduction APQ is enlargement



4

MN/BC = 4/8 = ½ (scaling factor) for ANM

MN = 4 and BC = 8

5

AQ/AC = 9/6 = 1.5 (scaling factor) for APQ

AC = 6 and CQ = 3

6

1/2 = AN/AB = AN/9 --à AN = 4.5cm



7

1/2 = AM/AC = AM/6 --à AM = 3cm



8

1.5 = PQ/BC = PQ/8 --à PQ = 12cm



9

1.5 = AP/AB = AP/9 --à AP = 13.5cm



10

13.5 = AP = AB+BP = 9+BP --à BP = 4.5cm
